Customizing AutoCAD

Topics covered in this Lesson:

Keyboard Shortcuts in AutoCAD, Customizing Interface, Adding Toolbar

One of the great things about AutoCAD is that it can be easily customized to suit the individual user. By now, you have seen how you can change the osnaps for example, but you can change a lot more than that. This lesson will introduce you to some of the customization options you have.

Keyboard Shortcuts

So far you have been using AutoCAD's default shortcuts. This section will show you how you can create your own to help your productivity. All shortcuts are stored in the acad.pgp file. This file is loaded into AutoCAD every time you start the program. It is now easy to edit thanks to an express tool names ALIASEDIT (you will need to have the express tools installed) . If you don't have Express Tools installed, this command will not work - but you can still edit you acad.pgp file in a text editor.

Type in ALIASEDIT and you'll see a dialog box pop up. Press the Add button.

Aliasedit in AutoCAD 2016

In this example, I have created a shortcut for MATCHPROP which is usually MA (I find that two keys on opposite sides of the keyboard slow me down). Since N is not used for anything, I find that one letter is more than twice as fast as two. Type in what you see and press OK.

Now press Apply so that the changes take effect. You'll see this dialog box warning you that you are about to overwrite your acad.pgp file. Press yes, ONLY if you are sure you did the correct changes.

Alias edit change

Press Yes and you will see a message pop up that you have saved your changes and that your current AutoCAD session has been updated. That means that you can now use the shortcut you just added.

If the shortcut command you select is already used by an existing command, then you can still overwrite that alias - but be aware that once changed, the old command will still work, but the shortcut will not.

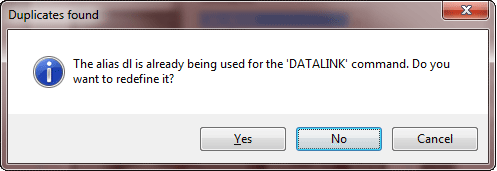

Duplicates found. The alias dl is already being used for the 'DATALINK' command. Do you want to redefine it?

In the example above, I entered DL to use as a shortcut for DIMLINEAR, but it is already in use for DATALINK. In this example, I would overwrite is as I use DIMLINEAR much more often than the DATALINK command. I can still type in DATALINK to use this command.

Think about what other commands you use often that aren't convenient to type in.

Customizing The Interface

Quick Access Toolbar
The quick access toolbar is the row of icons at the top of the screen. You'll find Save, Print and other common commands there. One that you won't find is Spell Check. This is one that should get used a lot, so I added it. It's easy and you can do it to. Use this method for adding any commands to this toolbar.

Navigate the Ribbon to Manage > Customization > User Interface. You'll see this dialog box come up.

CUI in AutoCAD 2010

In the top left section, look for the Quick Access Toolbar 1 folder. Then type spell in the Command List box and you'll see the Spell Check command appear below. Drag the command up to it's desired position on the toolbar. Press Apply. Your toolbar should now look like this.

Spell Check added to Quick Access Toolbar in AutoCAD

If you have read all the tutorials, you'll know that I don't recommend using icons. Still there are sometimes you may want to. Perhaps the command isn't used much, but you want easy access to it. Perhaps you can't create a shortcut for the command. There could be a few reasons, but here is how to create a new toolbar with the icons you want.

Adding a New Toolbar

With the CUI dialog box open, right click on Toolbars and select New Toolbar.

Adding a new toolbar in AutoCAD

Once you have your toolbar added to the list, drag a command up to it. I've decided that I want to have a toolbar with the common commands that I don't type in. Once you have some commands on your toolbar, press Apply to see your new toolbar.

Custom Toolbar in AutoCAD

Now you will add icons to your new toolbar. Right-click a toolbar and select Customize again. You'll see all the commands listed. You can now drag and drop an icon from that list to your custom toolbar. For this exercise, look at the list for commands you don't recognize and add them to your toolbar so you can try them out.

Right-Click Customization

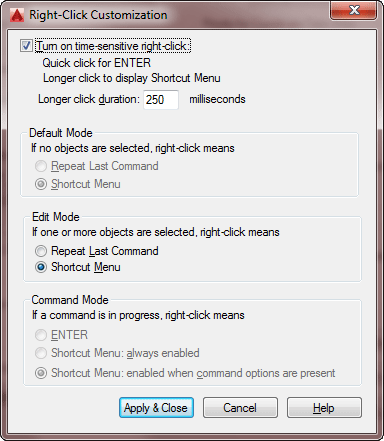

You can also control how your mouse works. By default AutoCAD displays a menu when you right click outside of a command. To do this, type OP for options and go to the user preferences tab. Select the "Right-Click Customization" button. You'll see this dialog box.

Right-Click Customization in AutoCAD

Look at the top item. I suggest turning this on as it can speed things up. Unless you frequently use the menus, you should switch to this. Remember, you can always change it back if you don't like this setting.

These are just a few ways that AutoCAD can be customized. You can create custom hatch patterns and linetypes - even fonts. Other options include programming to automate tedious tasks in AutoLISP, VisualLisp, VBA or C++ (ARX). As you get more familiar with AutoCAD, look into these options. There is almost no end to how you can change the ways that AutoCAD looks and acts.

If you want to take the next step and look into programming for AutoCAD, check out this great site for learning AutoLISP -

Video: Customizing AutoCAD
