Working with Attributes

Topics covered in this Lesson:

Adding Attributes | Editing Block Attributes | Extracting Attributes

So far in using AutoCAD you have created geometry: lines, circles, etc. You have also added things such as text and dimensions. All of these things could also be done by hand, so what else does CAD have to offer? As noted at the beginning of Level 1, AutoCAD is also a database of information. Most of that database contains the information for reproducing what you have drawn, but you can also add information that is non-graphical. One of the easiest ways of adding non-graphical information is to use attributes. An attribute is text that can be attached to a block that conveys more information than just the geometry on its own could convey.

Look at the two drawings below for an example; the first example shows some lines and arcs that could be anything.

Couch w/o Attributes

The second example shows the same geometry with the attributes visible so that you see what the shapes represent.

Couch w/ Attributes

The pictures above show a couch. The attributes describe what the model number, color and cost are as well as the manufacturer. From this simple example, you can see that AutoCAD has a useful tool for showing more than just geometry.

This example shows information about furnishings in an office. Once you have drawn the floor plan, you could insert blocks of furniture that have information about the manufacturer, price, weight, and any other information you may need. This information can then be extracted out of AutoCAD and then used in a spreadsheet or other program which could generate a Bill of Materials (BOM) or a Request for Quote (RFQ). Although you might not normally use the more advanced features of Attributes in your daily work, it's good to know how they work.

In this lesson you will be creating attributes and attaching them to the computer block that you made previously. Like everything you do in AutoCAD, there are particular steps involved when you work with attributes.

First you have to define (or create) the attribute and draw the geometry.
Next you will create the block with attributes.
Finally, when you insert the block you will give it the specific information

Many of the commands that you will be using are tough to remember at first. You may find it easier to use icons (but then the icons look very similar). Pull down menus are another option, so you can see exactly what the command is that you are starting.

Command Keystroke Icon Location Result
Define an attribute ATTDEF / ATT Define Attribute Define Attribute Icon Home > Block > Define Attribute Creates an attribute definition
Edit attributes DDATTE / ATE Edit Attributes Edit Attributes Icon Home > Block > Edit Attributes Edits the contents of an existing attribute
Display Atts. ATTDISP Attribute Display Icon Attribute Display Icon Home > Block > Retain Display Hides or shows attributes
Extract Attributes EATTEXT Extract Attributes Insert > Linking & Extraction > Extract Data Extracts attributes using the wizard

Open one of the floor plans you drew earlier with the Computer blocks in Lesson 2-2.

Insert a computer block and then explode it (type X <ENTER> and then select the block - press <ENTER>.)

Begin the Attribute definition command: ATT(or) ATTDEF (or) DDATTDEF

(AutoCAD has kept the commands from previous versions active in the new versions.)
Look at the dialog box below. Fill in the edit boxes just like the example. Make sure to adjust the text height if necessary.

Attribute Definition Dialog Box

What you did is give the attribute its definition: a name (tag), a prompt to help the user while they're inserting it, and a (default) value for the prompt. Once everything is entered, select the OK button.

When you are back on the drawing screen, pick a point to the right of the keyboard on the computer block. When you are done, the dialog box comes back so press OK.

Add the following attributes the same way, except instead of picking a point, check off the Align below previous attribute checkbox.

Tag Prompt Value
MONITOR What is the MONITOR SIZE? XX"
HDD What capacity is the Hard Drive? X.XX GB
RAM How much RAM is installed? XX GB
STATION What station is this XXX

Once all the attributes are created you should have something like this:

Computer with Attributes

Next you will create a block that includes your four attributes.

Start up the BLOCK command. Create it as shown in a previous lesson (2-2). When you select the Attributes, select them individually from top to bottom. When you are asked for the block name, give it the name COMPUTER-WITH-ATTRIBUTES.

Insert the block and you will get a dialog box where you can enter the values for the tags. You will be prompted to provide answers to the prompts that you defined in the attributes.

Inserting a Block with Attributes

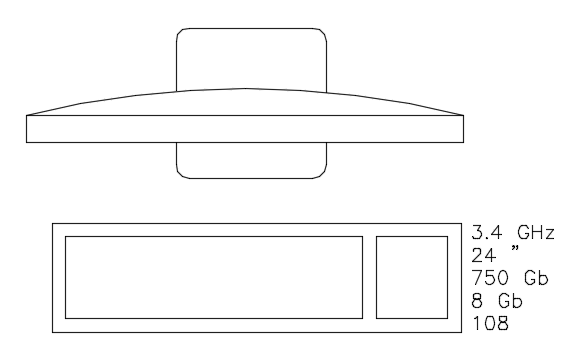

After inserting the block and answering all the prompts, your block should look like this:

Blocks displaying Attribute Values

Now by looking at the drawing, you can see exactly what type of computer it is and what station (location) it is. This is just one application, but you can see how it can be used in any discipline of drafting. You can either insert more blocks, or copy the one that is in the drawing.

Editing Attributes

Of course, in any project, the data is subject to change. In this example, the company may decide that it cannot afford 24" monitors. You can easily change the value of attributes within a single block insertion by double-clicking on the block. That will bring up this dialog box:

Attribute Editting

Remember that this will only edit the one block that you double-clicked on. If you want to change more than one block at a time to SAME values, you can select the blocks, then select your blocks, right-click and choose Properties. Look for the Tag value you want to change and remember you are changing all values to the same one you input now.

To clean up the walls, use the FILLET command with a Zero radius.

Video: Creating Attributes in AutoCAD

DISPLAYING ATTRIBUTES

Sometimes you don't want to see the attribute values displayed (say for plotting). You can turn them off. This can be done by typing in the command ATTDISP and then OFF. To turn them back on again, type ATTDISP and ON. It can't get much easier. You can also navigate the ribbon to Home > Block > Attribute Display and choose from these buttons.

Attribute Display in AutoCAD 2010

EXTRACTING ATTRIBUTE DATA IN AUTOCAD

So now you're wondering what can you do with all of this information. A CAD drawing can be used to track inventory and export that data to another file (such as Microsoft Excel - a spreadsheet application) for others to use. Maybe the purchasing department wants to know what to order, based on the design you are working on. Exporting the data became MUCH easier in recent versions of AutoCAD.

Insert 6-12 of the blocks of the computer you made with Attributes and fill out the values.

Start up the EATTEXT command and you will see the Data Extraction wizard dialog box appear. Accept the default setting of "Create a new data extraction" and press Next. You should be prompted to save your "Data extraction files as...". Select a folder and name the file "attributes_001". This will take you to step 2 of 8. This is where you tell AutoCAD what drawings you want to extract data from.

Attribute Extraction Dialog

You will have the option here to add more drawings (not in this example), but make sure that "Select objects in current drawing" is selected, and then use the icon to select the blocks that you want to include in this extraction. When you are done, press Next.

Now you need to tell AutoCAD what objects in the drawing you want to include in the extraction.

Attribute Extraction in AutoCAD

Check the box for "Display blocks with attributes only" and you should see that the only item in the list is your Computer-with-Atributes block. Press Next.

This takes you to the next stage where you can narrow down the extraction data even further. Check only the box for "Attribute" in the Category Filter. Press Next.

Attribute Extraction in AutoCAD

So far in each step you have narrowed the criteria for extraction from which drawings, to which blocks, and now you can select which attributes you want to extract. Press Next.

This step allows you to further filter and organize the data you want. You should have 2 extra columns than what is shown above - right click on the extra column and select "Hide Column". Next, select the column header for "Station" and drag it over to the left (this is to define the order of display which you'll see soon). Finally sort the Station column by clicking on the column header. Your dialog box should look like the one above now. Press Next.

Attribute Extraction in AutoCAD

On the next step, select both boxes. This will allow you to save the data to an external file and also place the data in your current drawing. Use the box shown below to select a location for the external file. Press Next.

Attribute Extraction in AutoCAD

Step 7 allows you to format the table that will be created in the drawing. Table are covered in another tutorial. Add a title for your drawing called "COMPUTERS". Select the box for "Use property names as additional column headers". Press Next.

Attribute Extraction in AutoCAD

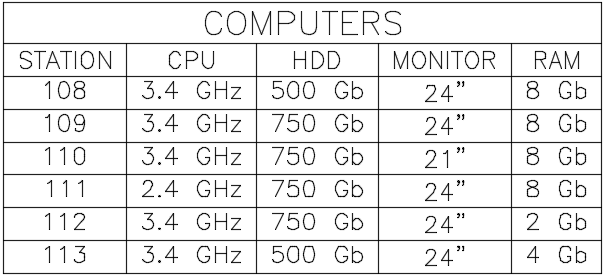

Read the instructions on the final step. In this example you chose to include a table so you will be prompted to select an insertion point after you click Finish. Press Finish, and your insertion point and you should have a table that looks like the one below. Note that the table is formatted like you wanted it with the Stations on the left and sorted numerically.

AutoCAD Table

You also have a table that is still linked to the blocks in your drawing. Edit the attributes in a few of your blocks. Then right-click select a area in the table (not text) and select "Data Extraction > Update Data Extraction". Deselect your table and you will see that it is now updated with the most recent block data. Powerful stuff!

For more about tables in AutoCAD, please refer to Tutorial4-9.

Data Extraction, Update Data Exctraction

You also have an Excel file on your computer showing the data from the drawing. Open it if you have Excel or another spreadsheet program and you should see something like this:

Excel-file, Station, CPU, HDD, Monitor, RAM, Computer room

Video: Extracting Attrabute Data

This is just a simple walkthrough of some of the power of AutoCAD. With more complex drawings and attributes, you can work wonders. Think about how easy it would be to build a table of all windows in a house plan if the windows were created as blocks with attributes. Some assembly drawings consist of nothing but standard blocks, this lesson shows how much this simple process of creating attributes would help the workflow. Attributes are powerful - remember to use them.

In everyday work, your exposure to attributes may be minimal. Still you might find yourself inserting blocks and entering some data, and now thanks to this exercise, you know the power of attributes. Get to know how this works and you can really impress your boss!

Extra Practice: Here is an exercise for creating a title block with attributes. This is a handy item to have. It allows you to quickly enter the data for the title block using attributes, rather than create text every time. Link to the exercise. You could then use the information in the Title Blocks to create a file showing information about all the drawings on your computer by extracting the data.
